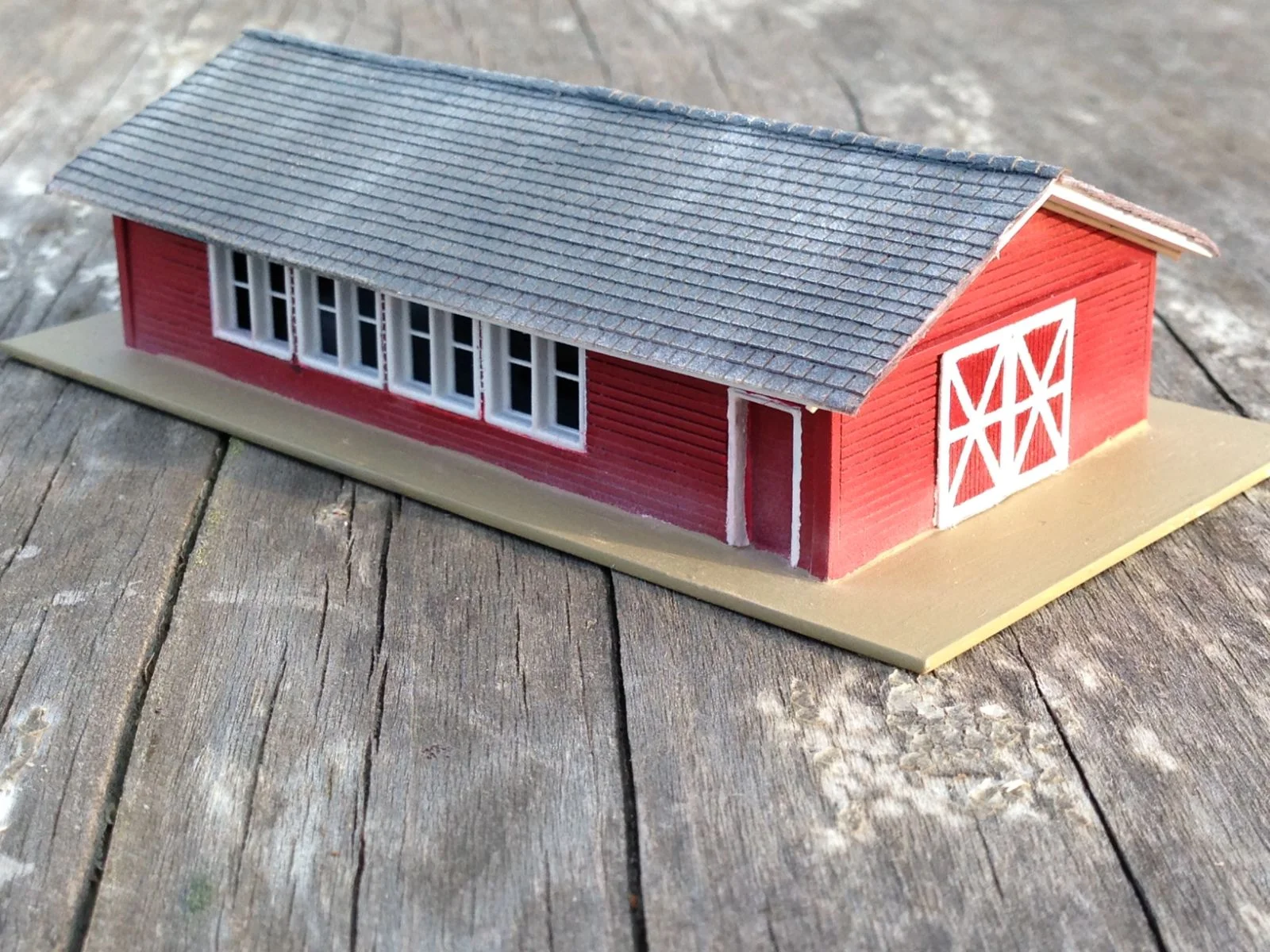

 The workshop building nearing completion.
       
     
 Installing the laser cut railings along the wrap around porch.
       
     
 Installing hundreds of strips of octagonal laser cut paper shingles, one row at a time.
       
     
 The completed Hay Barn.
       
     
 Over 350 hours went into the design and building of this 1:160 scale model. I spent close to a year working on it. The model base measures approximately 3′-6″ by 5′.
       
     
 This is the view of the Ranch House that visitors would have had when they arrived. The round driveway was also used for impromptu horse racing.
       
     
 The ornate trim of the wrap around porch and the turret tower were key elements that had to be shown in this very small model.
       
     
 The 1/160 scale corresponds to a popular model railroad scale, so small figures of people, animals and vehicles are commercially available.
       
     
 The laser cut railings extend around two sides of the Ranch House.
       
     
 The house cook takes a break out on the porch while two of the children play hide and seek in the bushes.
       
     
 Several of the buildings also feature LED lighting with adjustable dimmer controls.
       
     
 Small details like trash cans and gardening tools add to the overall scene.
       
     
 An early morning delivery of grain is made to one of the horse barns. The 1922 Model T stake side pickup is a model kit that I assembled and painted.
       
     

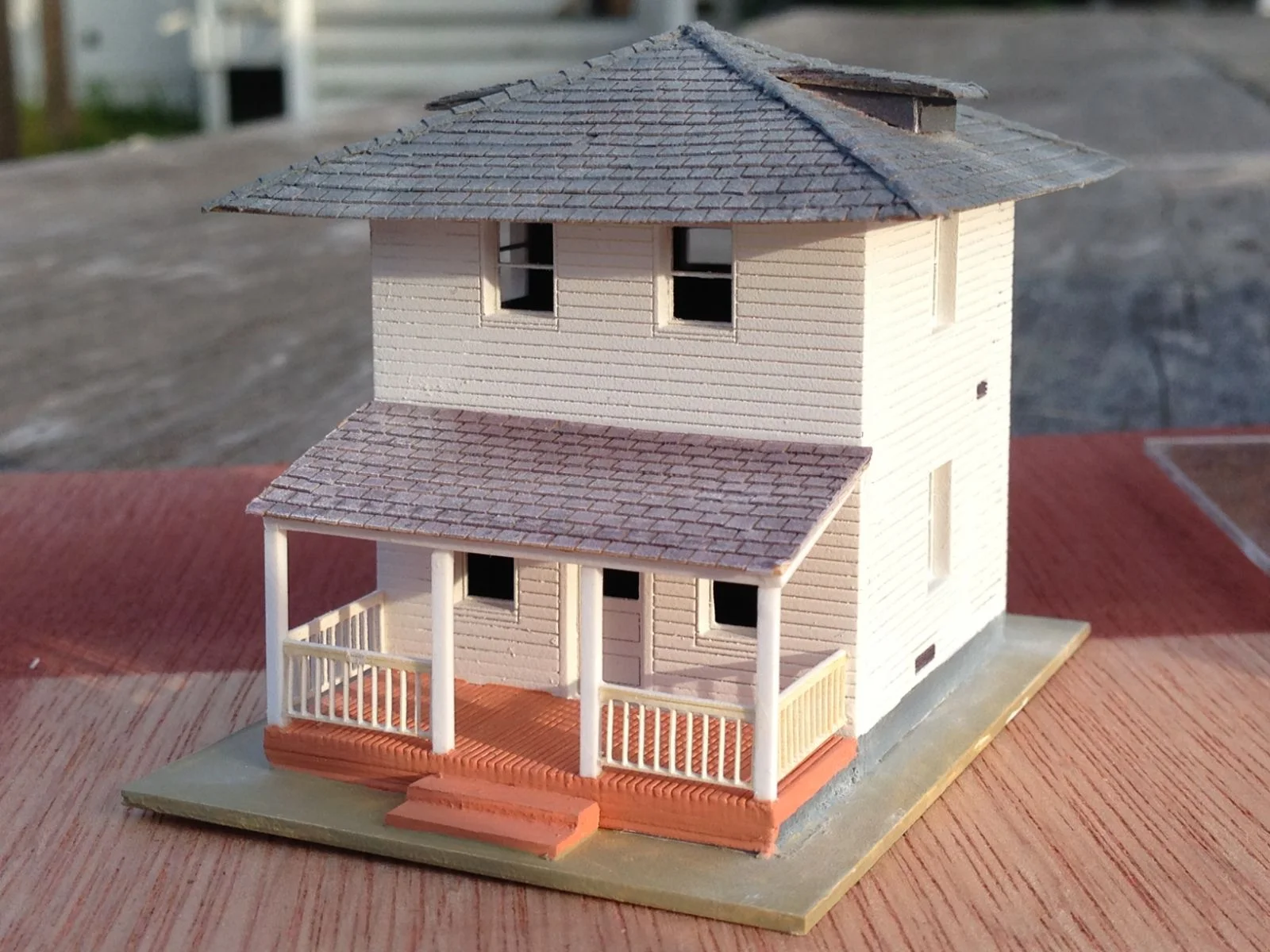

 The guest house nearing completion.
       
     
 Most of the 140 trees and other vegetation were also scratch-built.
       
     
 A rider approaches the Hay Barn.
       
     
CSM 19.jpg
       
     
 The Workshop and the Hay Barn from across the field.
       
     
CSM 21.jpg
       
     

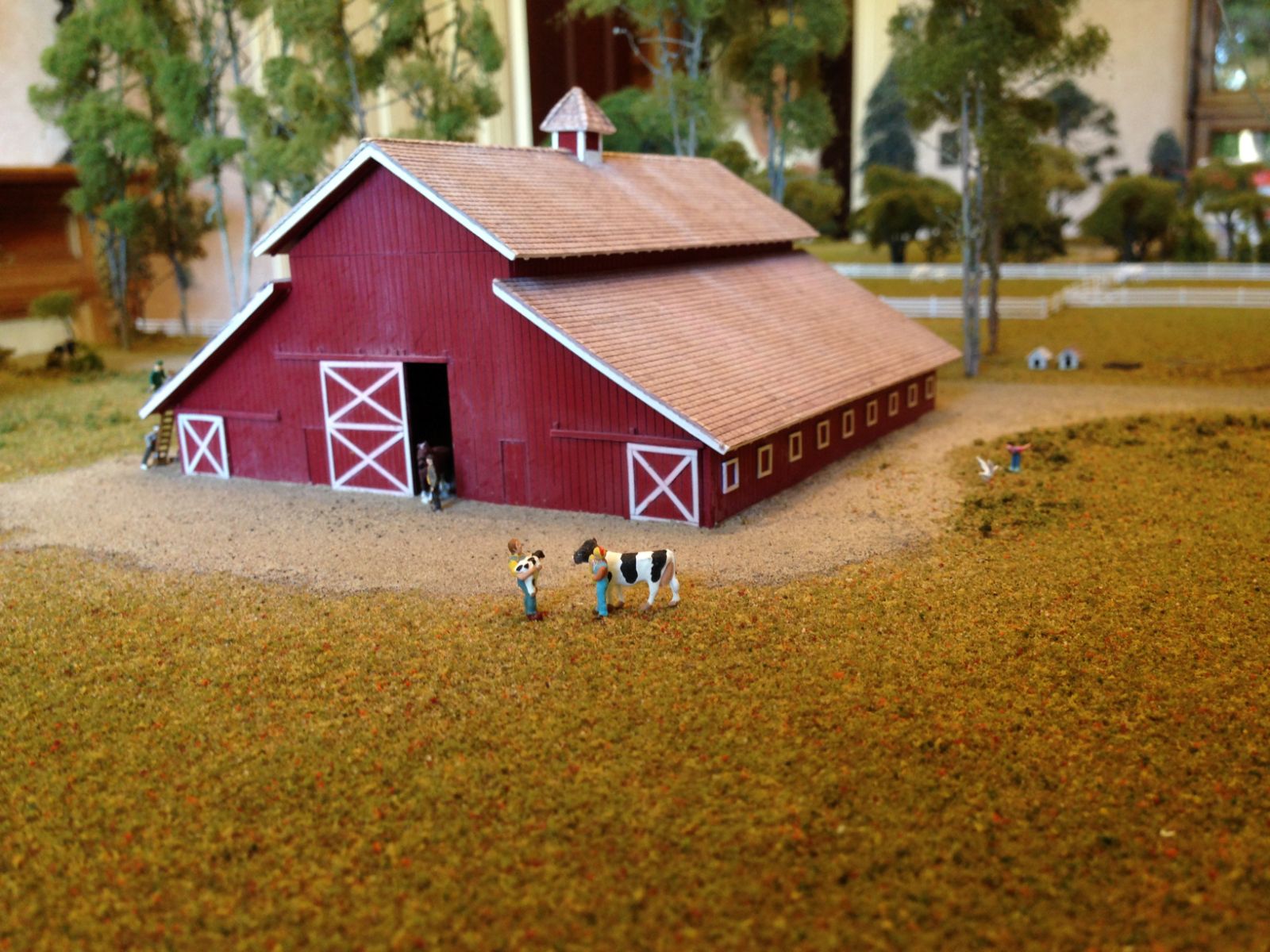

 Adolfo Camarillo took great pride in the horses he raised and trained on the property.
       
     
CSM 24.jpg
       
     
 A crew of painters refreshes the Ranch Hand Bunkhouse with a new coat of bright red paint.
       
     
 Some lawn tools are staged out behind the garden shed/garage, ready for use.
       
     
CSM 27.jpg
       
     
CSM 28.jpg
       
     
CSM 29.jpg
       
     
CSM 30.jpg
       
     
James Freed Design carousol.png
       
     
Camarillo Ranch Scale Model
       
     
Camarillo Ranch Scale Model

Camarillo, Ventura County, CA – 2015

The Camarillo Ranch House, also known as the Adolfo Camarillo House, is a Queen Anne-style Victorian house in Camarillo, California. Built in 1892, the 6,000-square-foot house was added to the National Register of Historic Places in 2003. The house is currently operated by the Rancho Camarillo Foundation as a museum, and is open to the public for docent-led tours.

This scale model exhibit of the house and it’s immediate surroundings resides inside the Ranch house, and helps to orient visitors to the property. It also shows them what it looked like in the 1920’s.

Project Credits: James Freed: design, model construction, painting, detailing, trees and model base sculpting and finishing, LED lighting installation. Ryan Henderson: CAD drafting and some model construction. Bill Stockton: Custom wood trim for model base.

 The individual structures were built first.
       
     

The individual structures were built first.

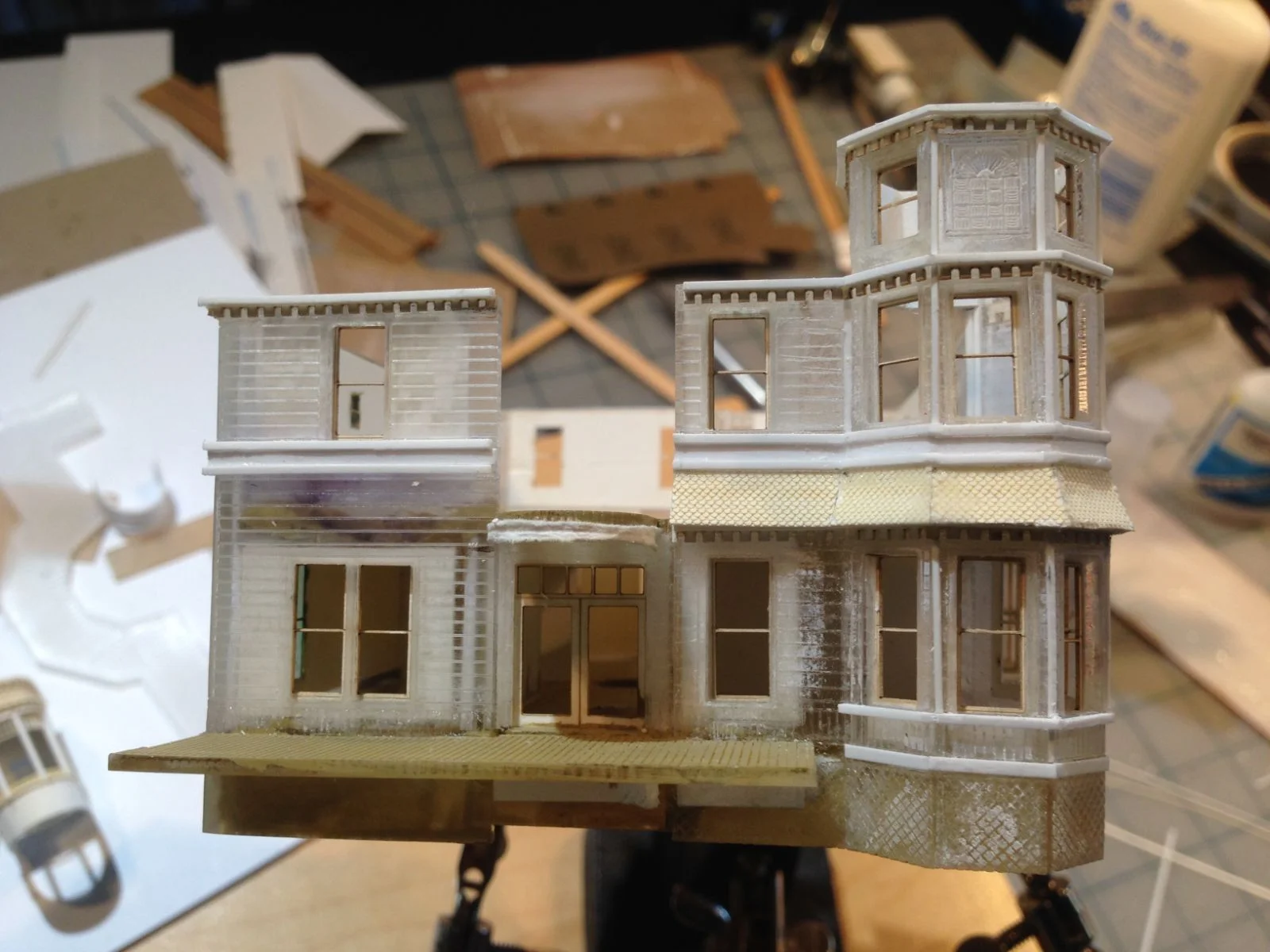

 Each building model was drafted using CAD software from measurements made on site or from historical photographs. The models were constructed using laser cutting and etching on 1/8th inch thick sheet acrylic, then assembled by hand, detailed, painted and weathered to look like the real thing.
       
     

Each building model was drafted using CAD software from measurements made on site or from historical photographs. The models were constructed using laser cutting and etching on 1/8th inch thick sheet acrylic, then assembled by hand, detailed, painted and weathered to look like the real thing.

 The workshop building nearing completion.
       
     

The workshop building nearing completion.

 Installing the laser cut railings along the wrap around porch.
       
     

Installing the laser cut railings along the wrap around porch.

 Installing hundreds of strips of octagonal laser cut paper shingles, one row at a time.
       
     

Installing hundreds of strips of octagonal laser cut paper shingles, one row at a time.

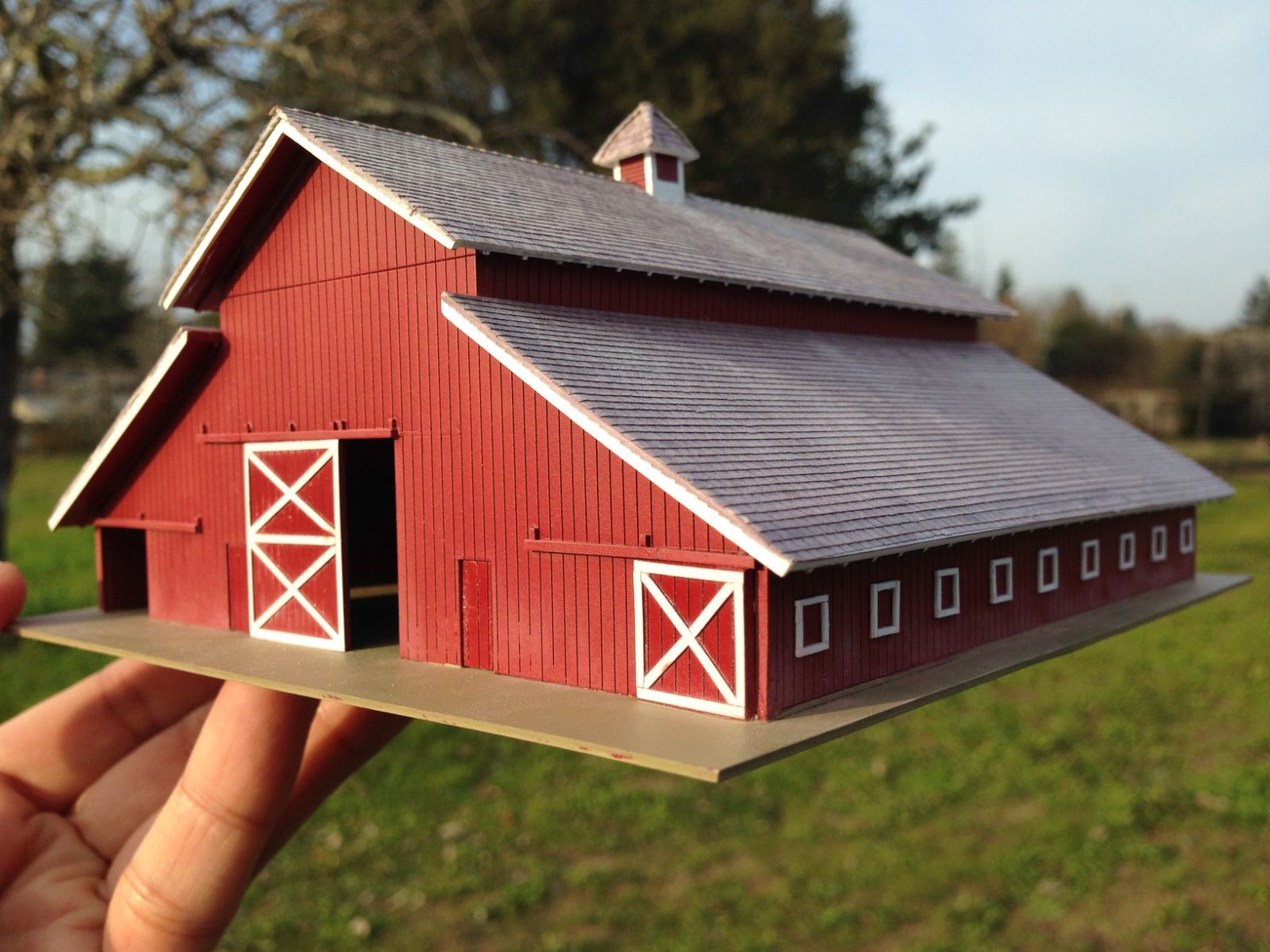

 The completed Hay Barn.
       
     

The completed Hay Barn.

 Over 350 hours went into the design and building of this 1:160 scale model. I spent close to a year working on it. The model base measures approximately 3′-6″ by 5′.
       
     

Over 350 hours went into the design and building of this 1:160 scale model. I spent close to a year working on it. The model base measures approximately 3′-6″ by 5′.

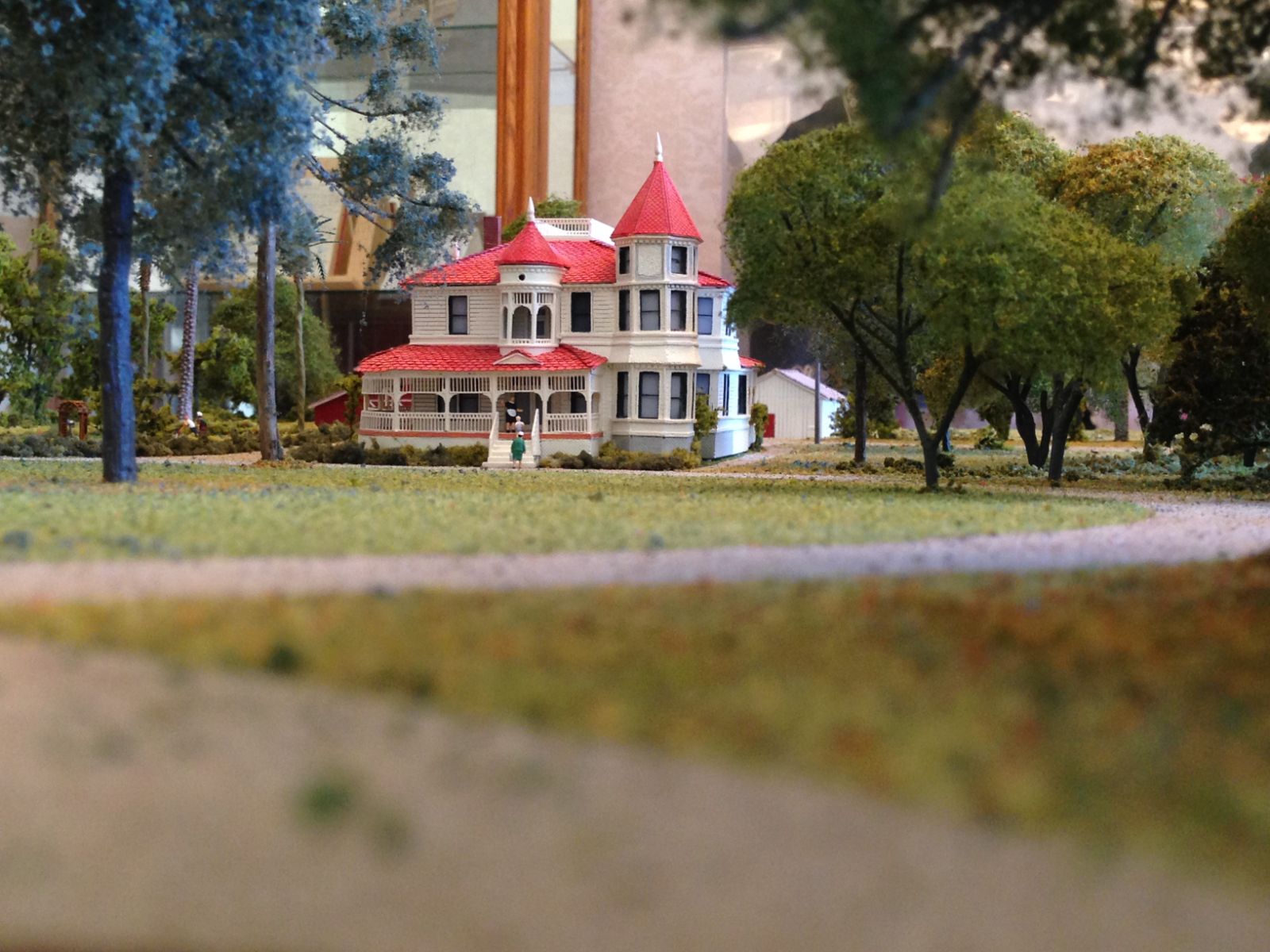

 This is the view of the Ranch House that visitors would have had when they arrived. The round driveway was also used for impromptu horse racing.
       
     

This is the view of the Ranch House that visitors would have had when they arrived. The round driveway was also used for impromptu horse racing.

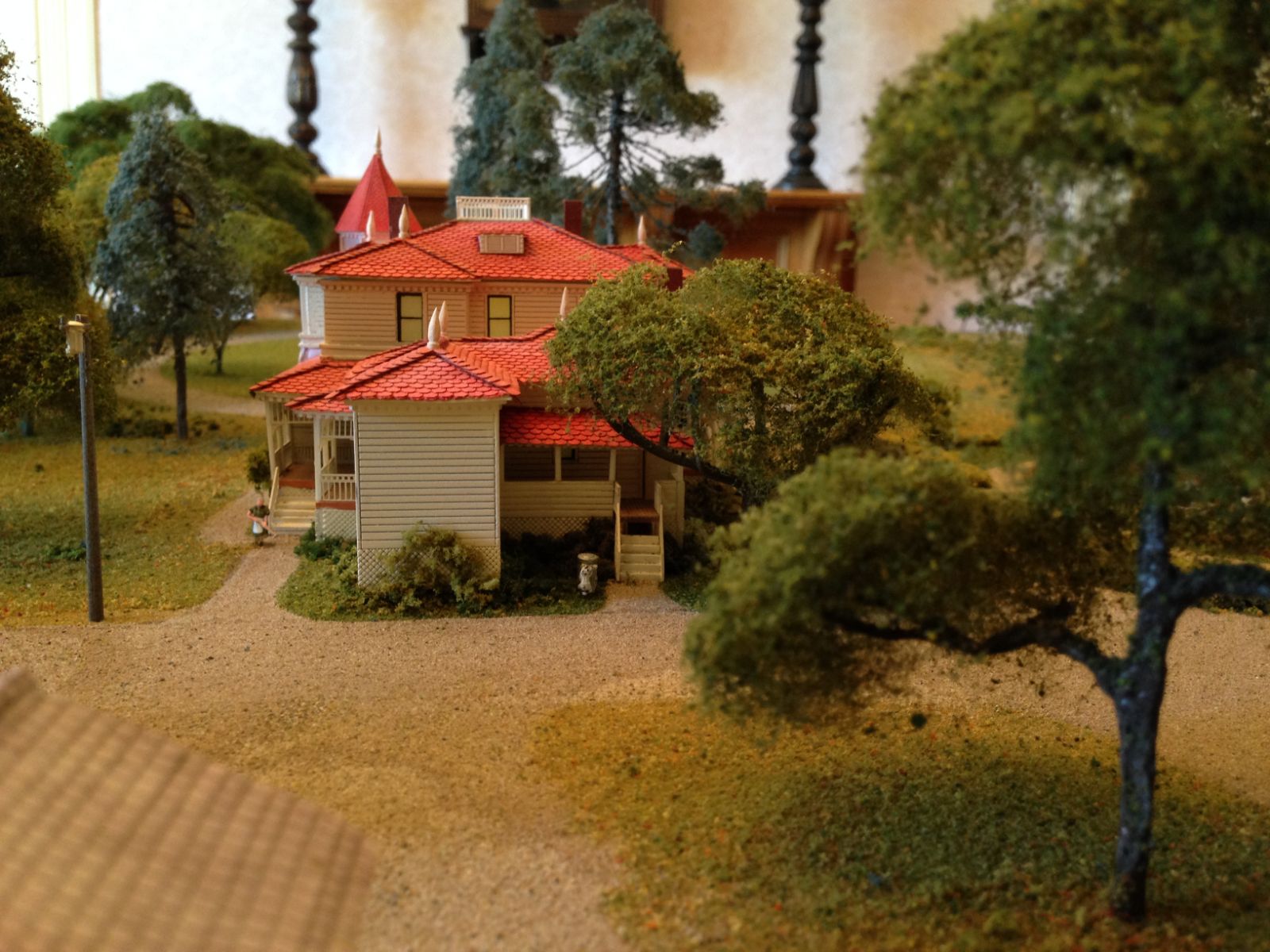

 The ornate trim of the wrap around porch and the turret tower were key elements that had to be shown in this very small model.
       
     

The ornate trim of the wrap around porch and the turret tower were key elements that had to be shown in this very small model.

 The 1/160 scale corresponds to a popular model railroad scale, so small figures of people, animals and vehicles are commercially available.
       
     

The 1/160 scale corresponds to a popular model railroad scale, so small figures of people, animals and vehicles are commercially available.

 The laser cut railings extend around two sides of the Ranch House.
       
     

The laser cut railings extend around two sides of the Ranch House.

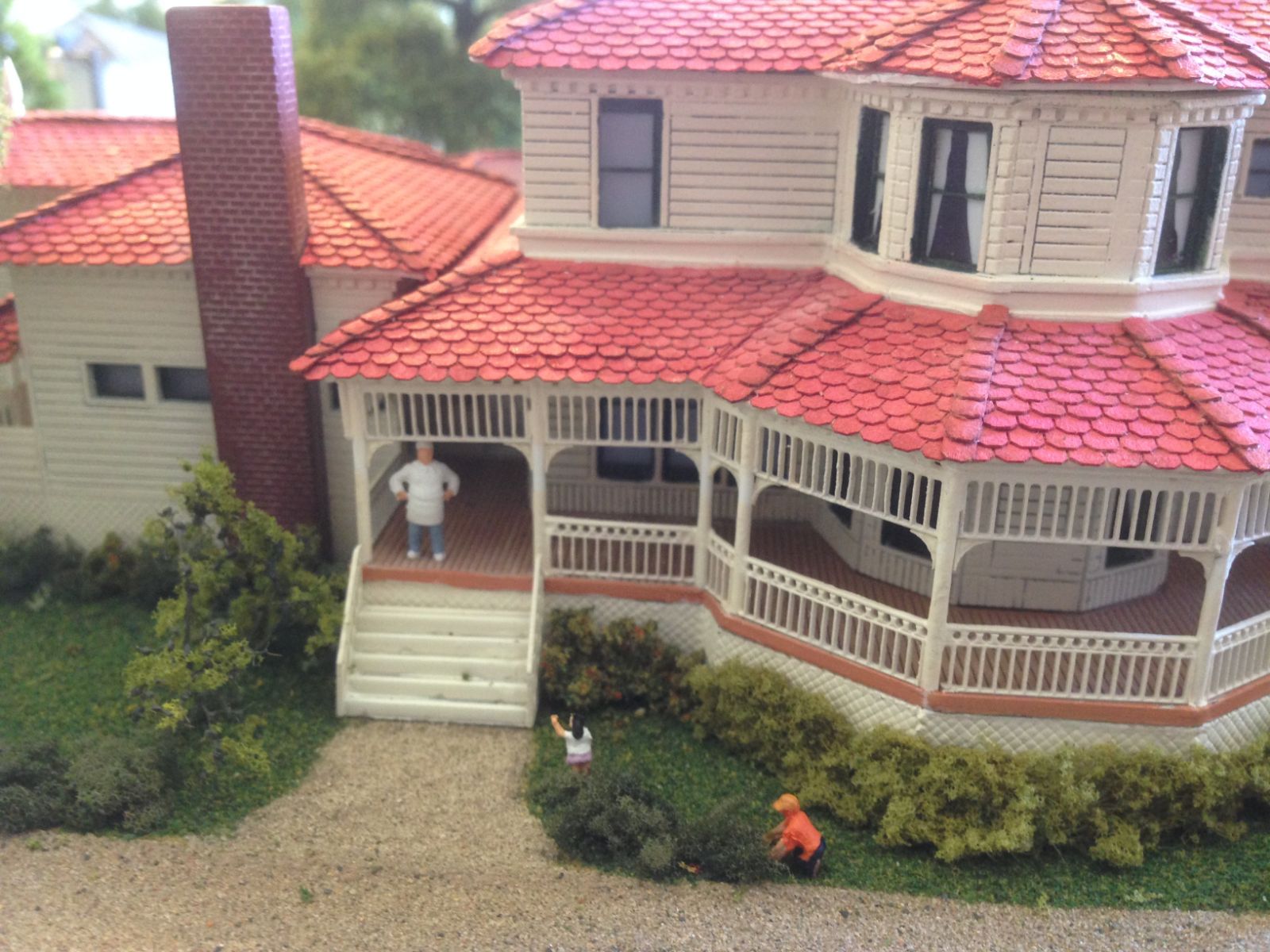

 The house cook takes a break out on the porch while two of the children play hide and seek in the bushes.
       
     

The house cook takes a break out on the porch while two of the children play hide and seek in the bushes.

 Several of the buildings also feature LED lighting with adjustable dimmer controls.
       
     

Several of the buildings also feature LED lighting with adjustable dimmer controls.

 Small details like trash cans and gardening tools add to the overall scene.
       
     

Small details like trash cans and gardening tools add to the overall scene.

 An early morning delivery of grain is made to one of the horse barns. The 1922 Model T stake side pickup is a model kit that I assembled and painted.
       
     

An early morning delivery of grain is made to one of the horse barns. The 1922 Model T stake side pickup is a model kit that I assembled and painted.

 The guest house nearing completion.
       
     

The guest house nearing completion.

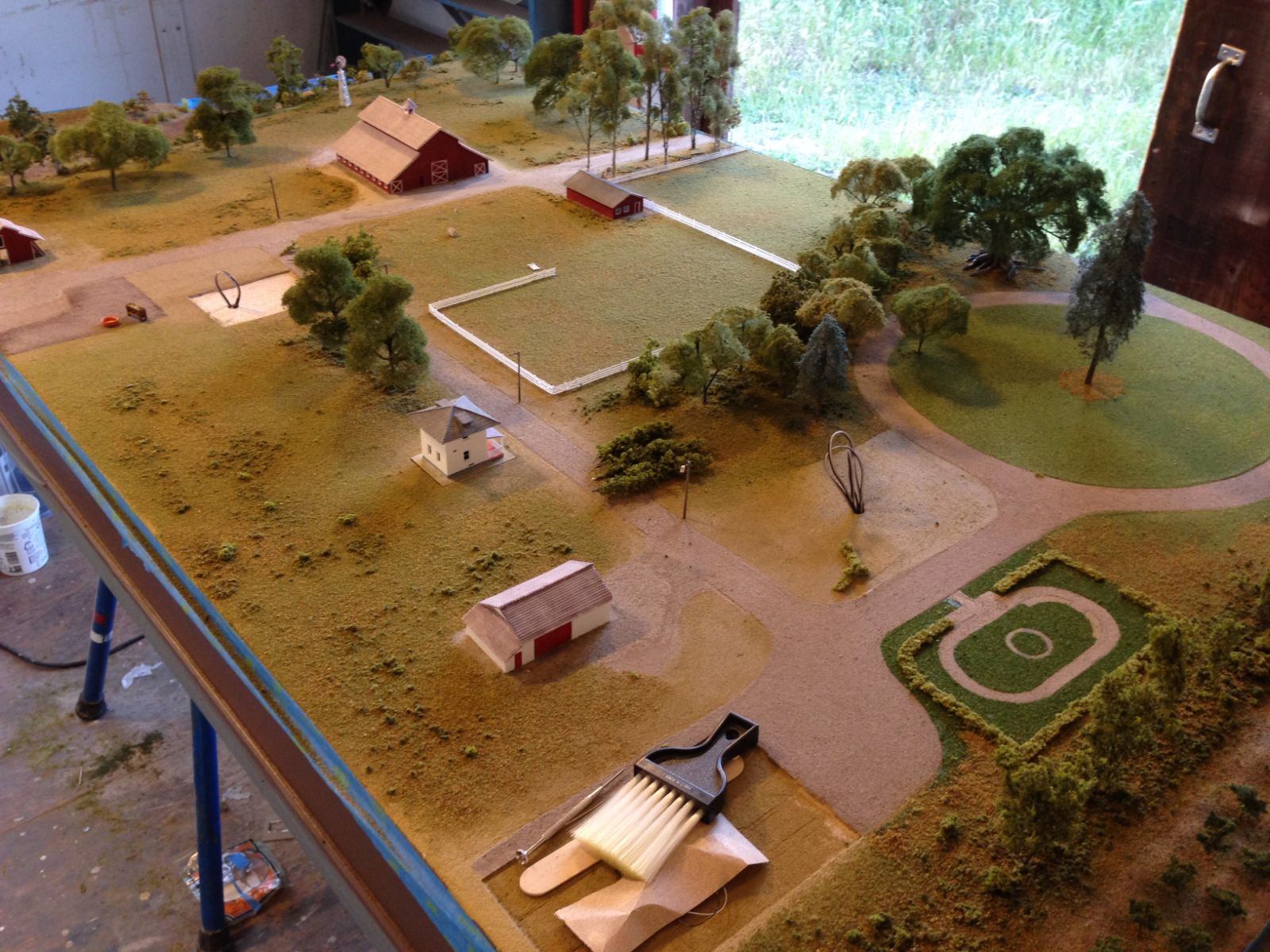

 Most of the 140 trees and other vegetation were also scratch-built.
       
     

Most of the 140 trees and other vegetation were also scratch-built.

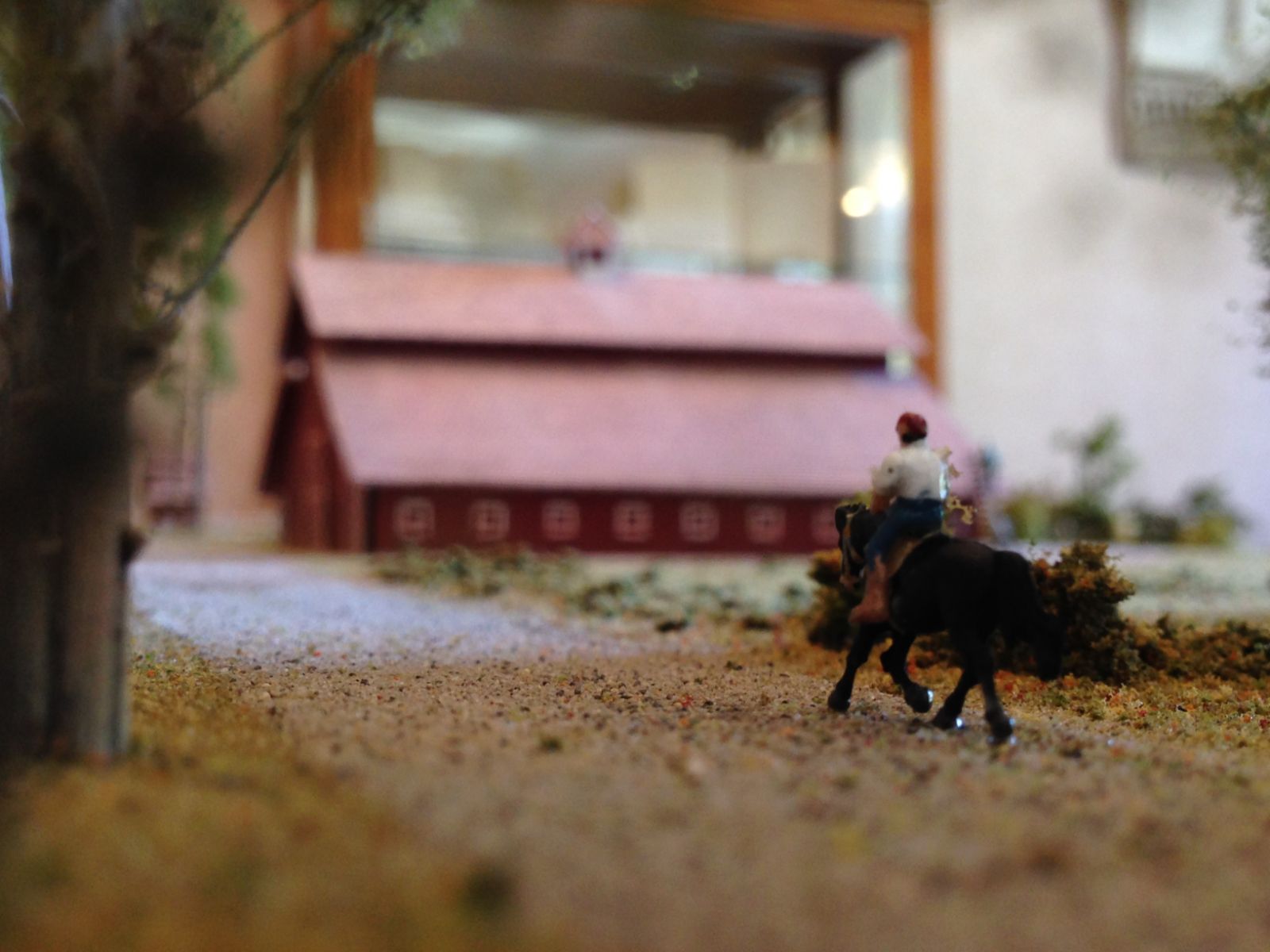

 A rider approaches the Hay Barn.
       
     

A rider approaches the Hay Barn.

CSM 19.jpg
       
     

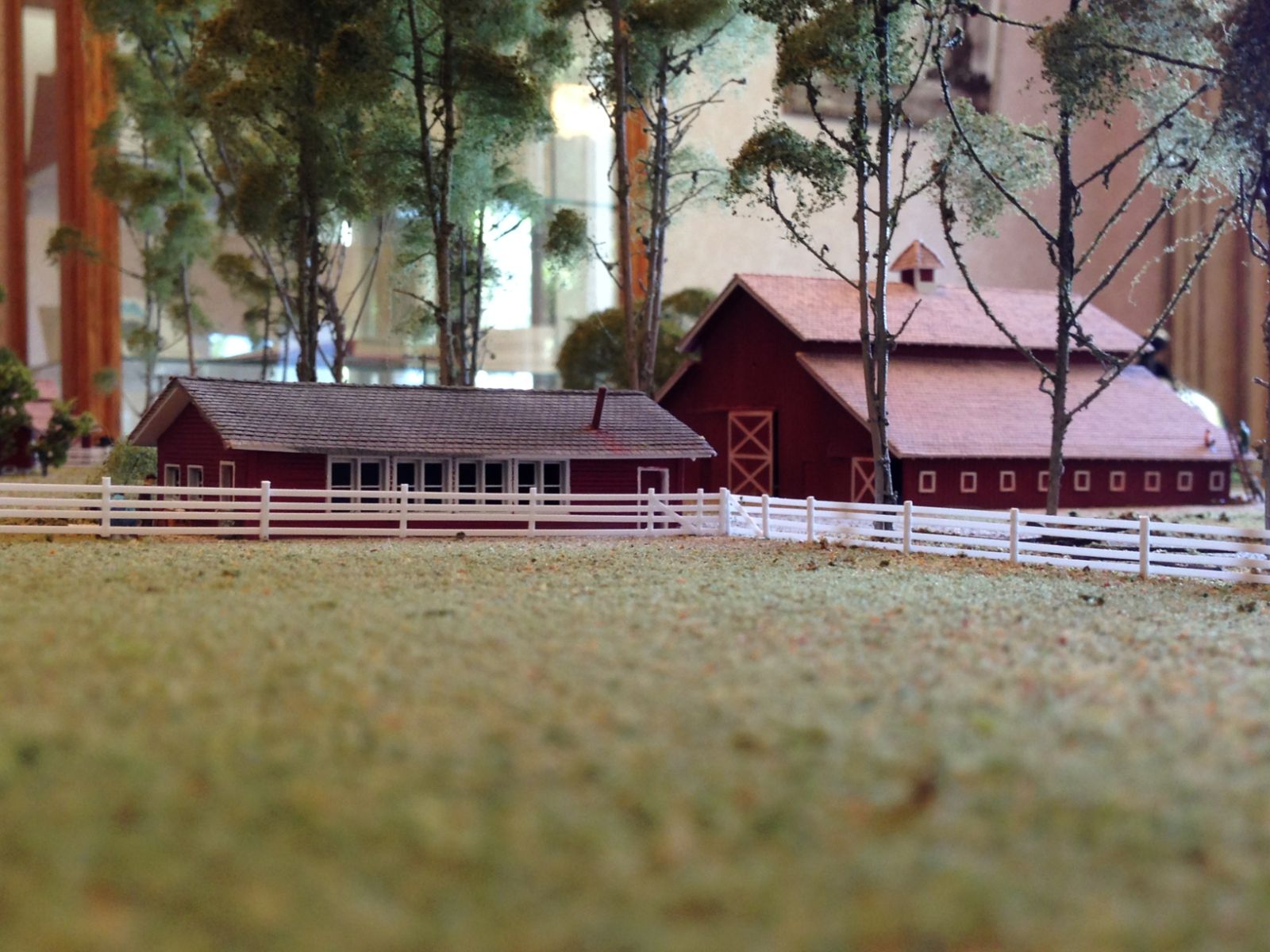

 The Workshop and the Hay Barn from across the field.
       
     

The Workshop and the Hay Barn from across the field.

CSM 21.jpg
       
     
 Adolfo Camarillo took great pride in the horses he raised and trained on the property.
       
     

Adolfo Camarillo took great pride in the horses he raised and trained on the property.

CSM 24.jpg
       
     
 A crew of painters refreshes the Ranch Hand Bunkhouse with a new coat of bright red paint.
       
     

A crew of painters refreshes the Ranch Hand Bunkhouse with a new coat of bright red paint.

 Some lawn tools are staged out behind the garden shed/garage, ready for use.
       
     

Some lawn tools are staged out behind the garden shed/garage, ready for use.
